(Standard) (Light-Duty Articulating Glass Bolt) (Tapered-Face)​

Stella's hardware solution for a curved glass effect application!

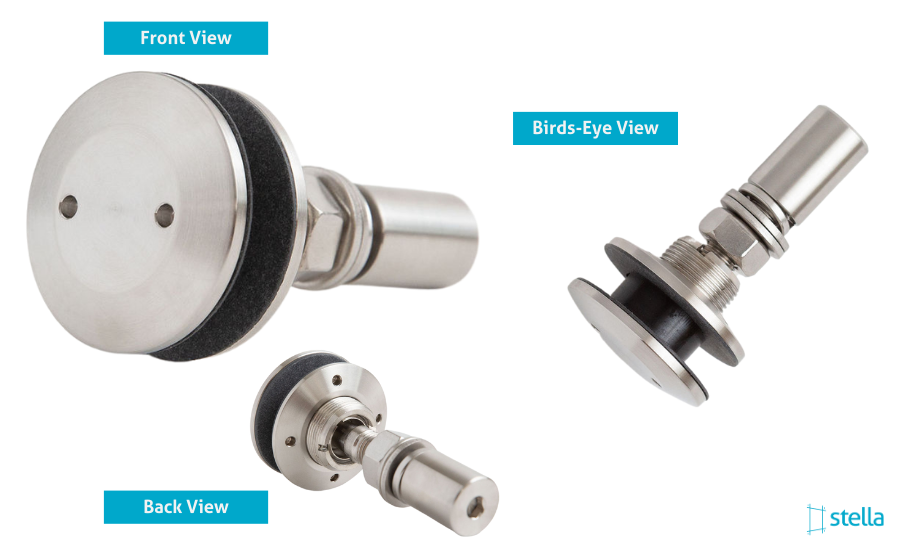

Light-Duty Articulating Glass Bolt (Tapered-Face)​

Save some money if you don’t need all the loading requirements of our AB602’s M16 support bolt.
With a tad smaller face on the outside of glass (50mm [2”]) and a M12 internal support bolt, our AB502 glass bolt will give you all the loading you need on your small to mid-sized glass panels on canopies, interior portioning walls, and even artwork.

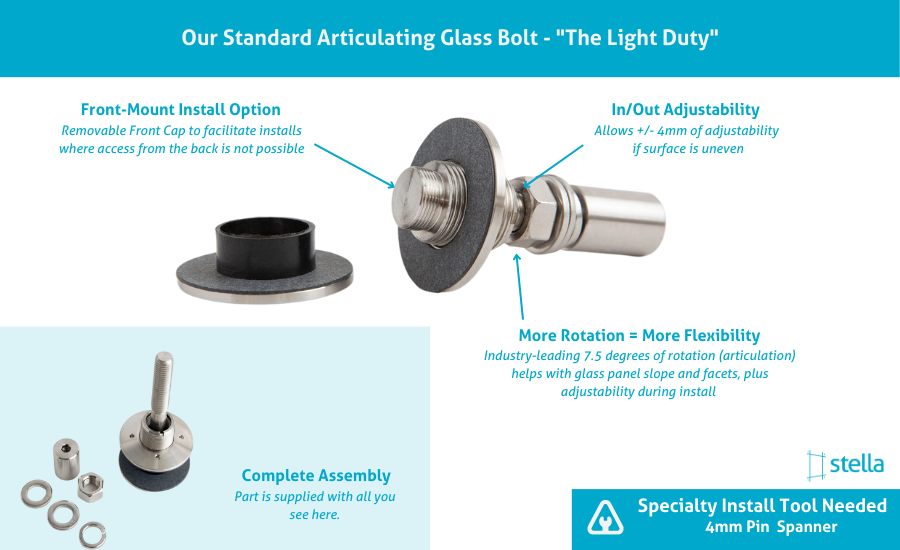

AB502 offers all the adjustability that you hope you won’t need on site but invariably do.
Rely on this bolt’s in/out adjustability of 6mm [1/4”] for those unexpected surprises in site tolerances.
Add slope to your canopies and just a bit more adjustments to your install with industry-leading 7.5 degrees of rotation in our bolt’s swivel head…we promise you’ll appreciate that extra articulation our bolt provides.

And…should you find yourself without any access to back during install, rest assured knowing that this glass bolt (like many of our products) can accommodate a front-mount install too.

Want this part in your hands within 24 hours?
Available in standard format exclusively through White Cap Supply Canada, Inc.
Find the Canadian location closest to you – Brafasco here OR Brock White here.

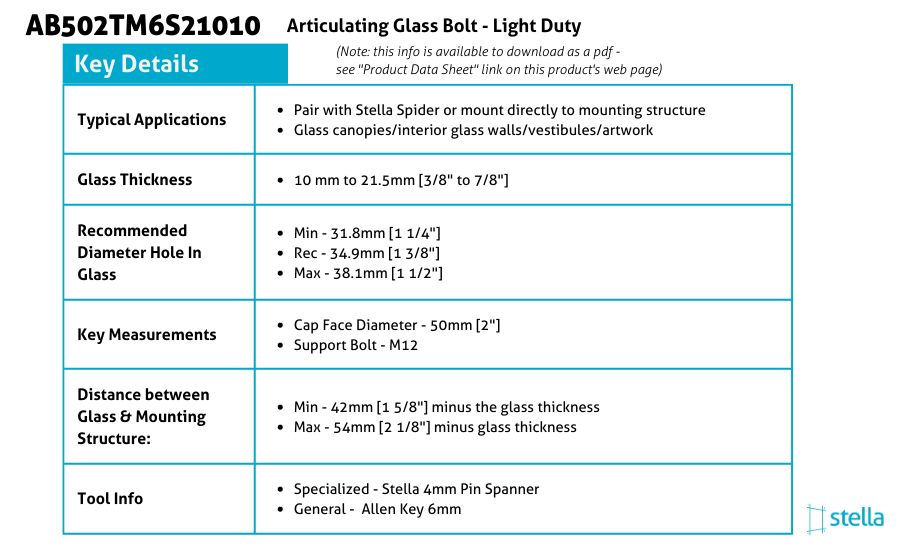

  • Part Number:

    WC SKU: 1187281 / Stella Ref: AB502TM6S21010

  • Category:

    Stella Standard

  • Product Data Sheet (PDF):

  • Specifications (DOC):

  • Install Guide (PDF):

  • FAQ Answered Here
