Minimal Structure Maximum Transparency!

20/20 on 4th

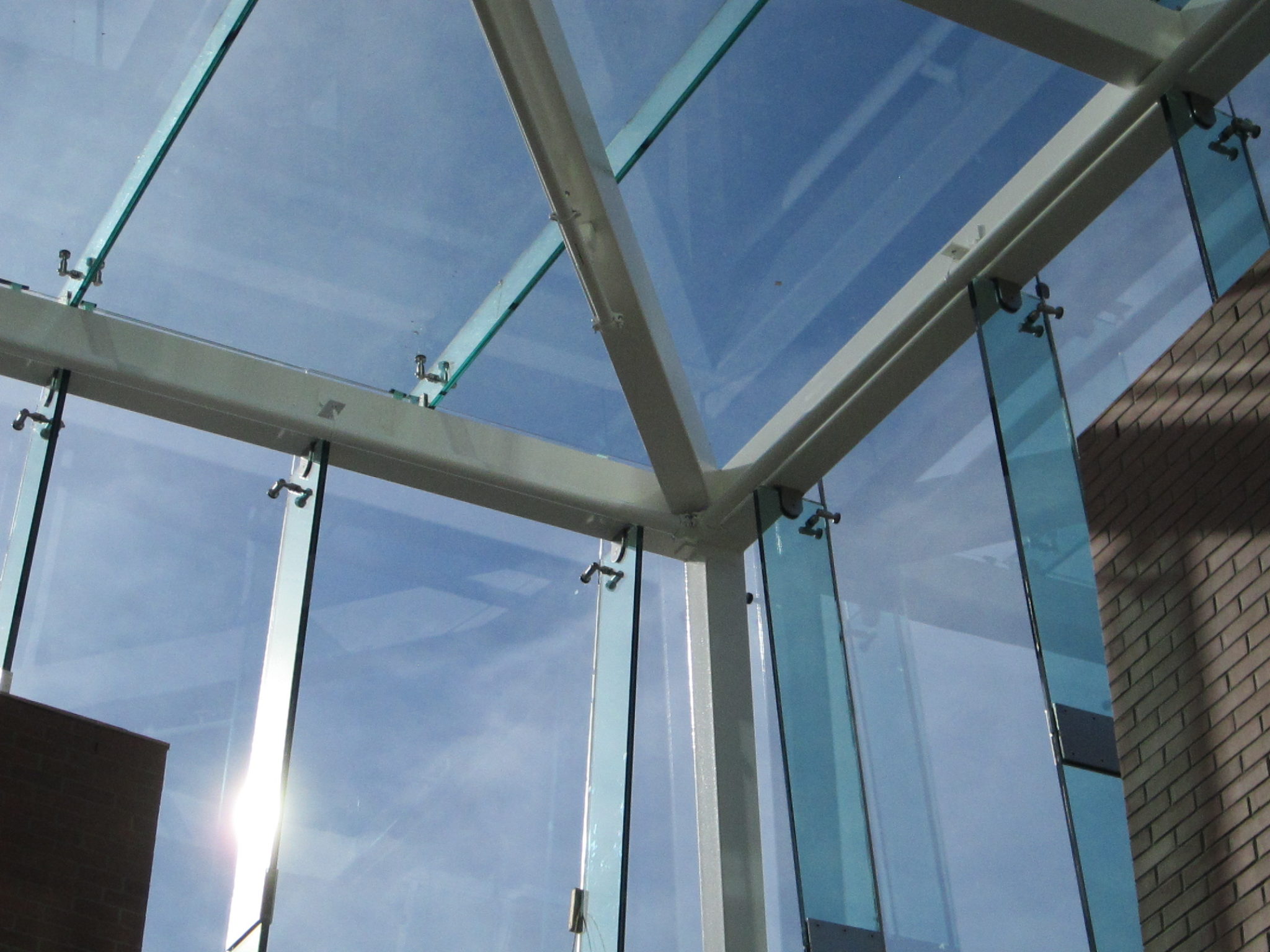

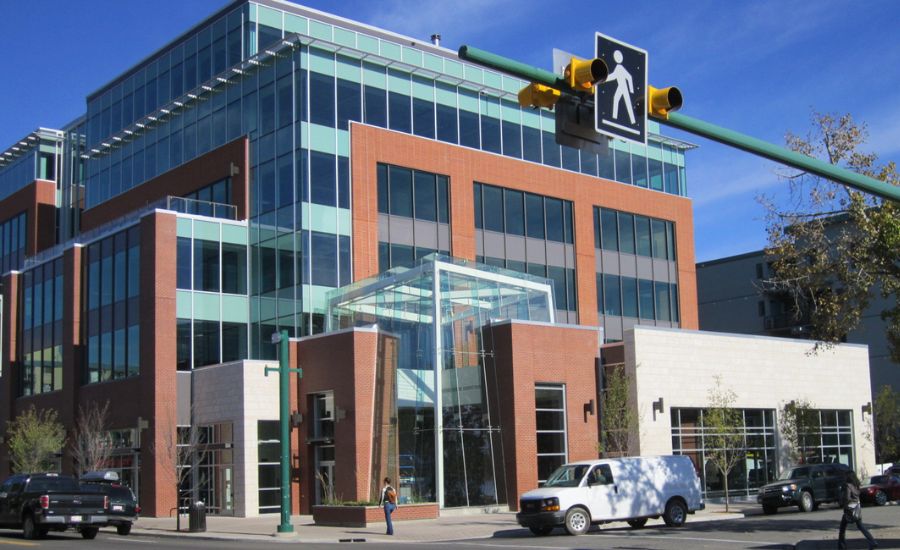

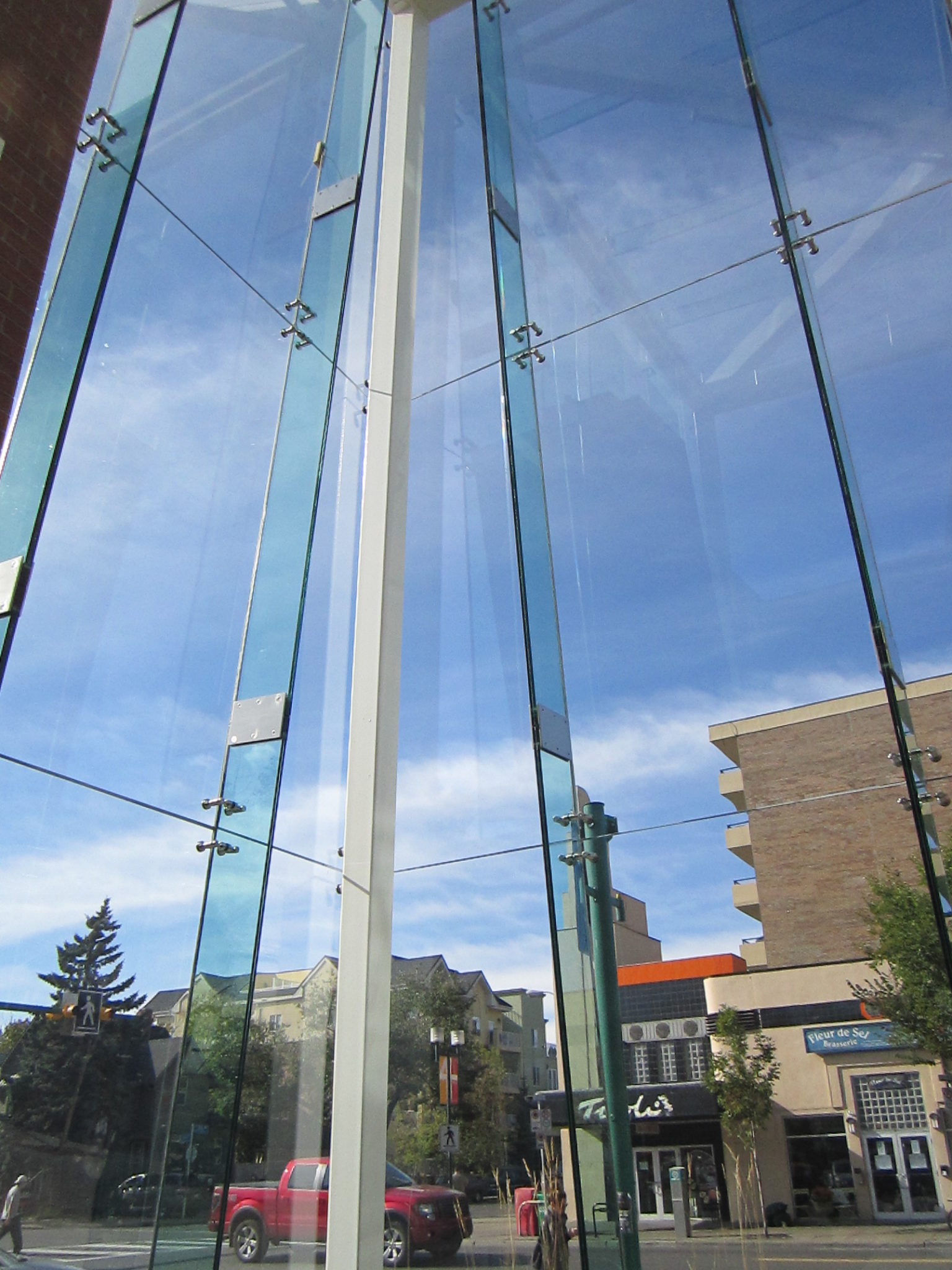

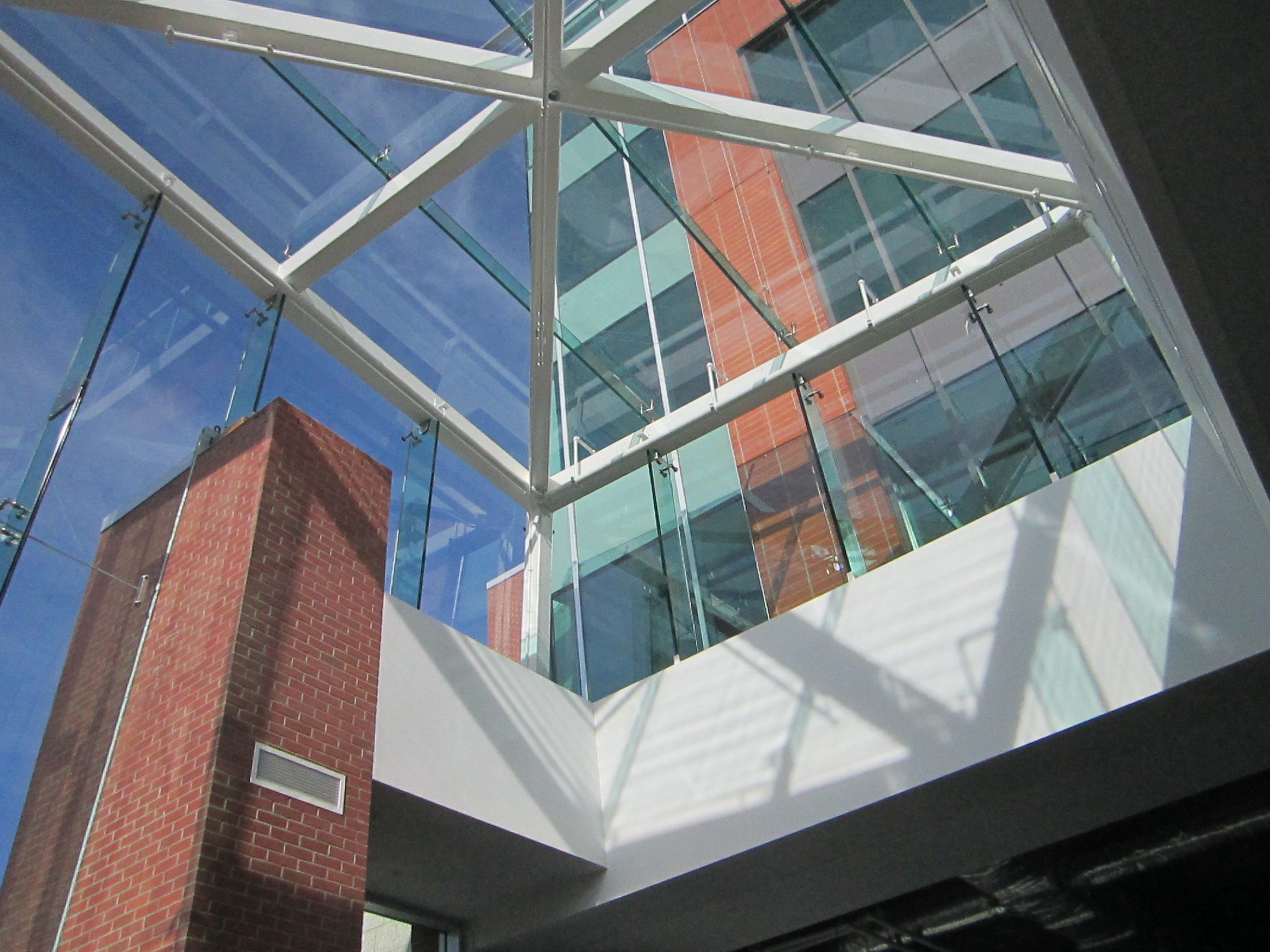

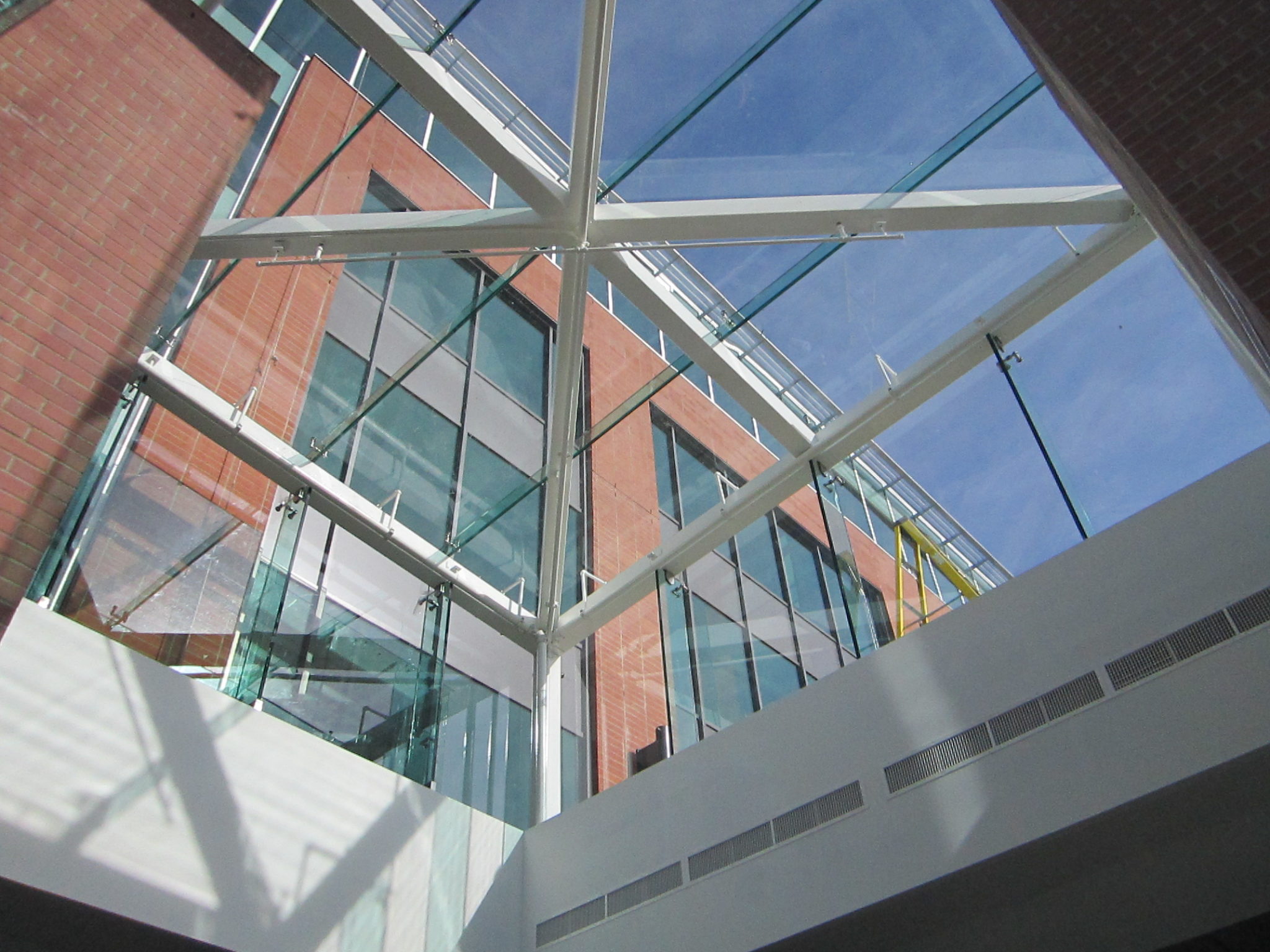

Minimal use of structure and maximum transparency were the objective of this light box placed atop a concrete roof, creating an unusual external feature whilst allowing light into the building. Sloping glass fins span between the minimal steel HSS structure, supporting the face glass through holes drilled near the corners of the glass.

Location:

Calgary, Alberta

Architect:

Gibbs Gage Architects

Application:

Structural Glass Wall Systems, Glass Enclosure

Products & Systems Used:

Full Glass Fin Support Structure DP5052T0 DP5051TM Stella Fin Base Connector Stella Fin Head Connector Stella Fin Splice Plate
