Mohawk College – David Braley Athletic and Recreation Centre

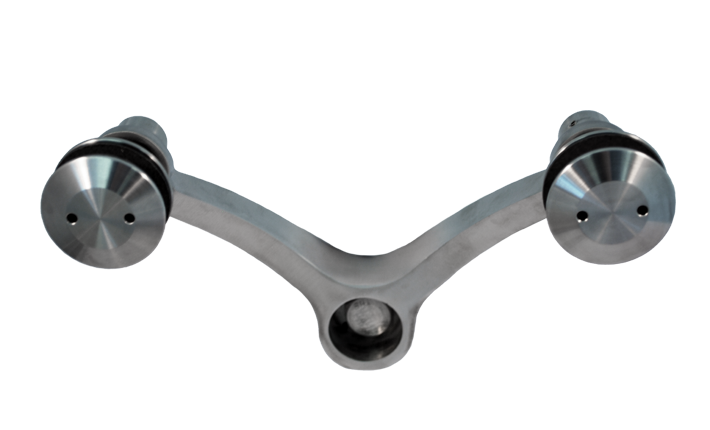

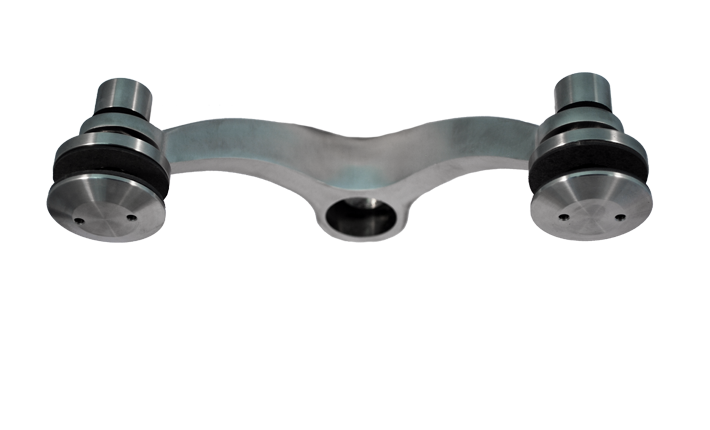

A heavy-duty double-arm v-shaped face-mounted spider connected with two medium-duty non-articulating (Front-Mount) Bolts.
Non-articulating bolts for glass come in a simple assembly and can mount glass closer to spider (or structural) support than an articulating bolt.
Through our use of neoprene gaskets (A synthetic rubber that Stella uses as a gasket with our bolts for glass to provide a “soft connection” between the glass and the support structure) in the back assembly of bolts, they also provide some flex to reduce stresses in glass.
Useful for situation where access from the back is not possible, the 5-steps install process of a front-mounted bolt saves you time and money!
Bigger Bolts for bigger glass!
The larger your glass panel, the bigger the supporting bolt you need. From 10mm single-glazed to much thicker double-glazed glass glass – we’ve got you covered. If your glass falls out of this range – we’ll customize a bolt to fit your job.
Here’s some technical info for all the people that speak “glass”.
There are many changes we can make to our bolts in line with our “Stella Standard” to ensure our hardware is modified perfectly for your project’s exact needs.
Spectrum Series Finishes!
Stella is always looking for new an innovative ways to ensure that you have options for your projects. The Spectrum Series is a Hard Ceramic Coating that allows stainless steel hardware to be colour coated without the fear of chipping that alternative colour options usually have.
Stainless Steel coatings such as powder coating or paint are prone to chipping. This coating is much harder and has much better adhesion to stainless steel. This coating is also much thinner (0.75 umm – 1.0 umm thickness) which means threads stay operable even when coated.
Colours Options: Black, Gold, Silver/Grey, Rose Gold & Purple.
Available Textures: Matte, Brushed, Polished/Mirror.
Specialty Patterns: Designer or specialty patterns (camouflage for example) are available upon request. These options do cost more but may be able to achieve specialty patterns that are otherwise unavailable on Stainless Steel.
Key Dimensions:View Dimensions
