Draft Stop Smoke Baffle

The Draft Stop will:

  • Be located immediately adjacent to the opening
  • Be at least 457mm [18”] deep
  • Be of noncombustible or limited-combustible material that will stay in place before and during sprinkler operation.

Glass Specification Details

Glass Type

  • 12mm tempered or 13.5mm tempered laminated

Glass Fabrication Details

  • Each panel has two holes drilled the top edge

Recommended Max Panel Width

  • 1.5m [5’] x 500mm [20”] high

Other Details

Material Details

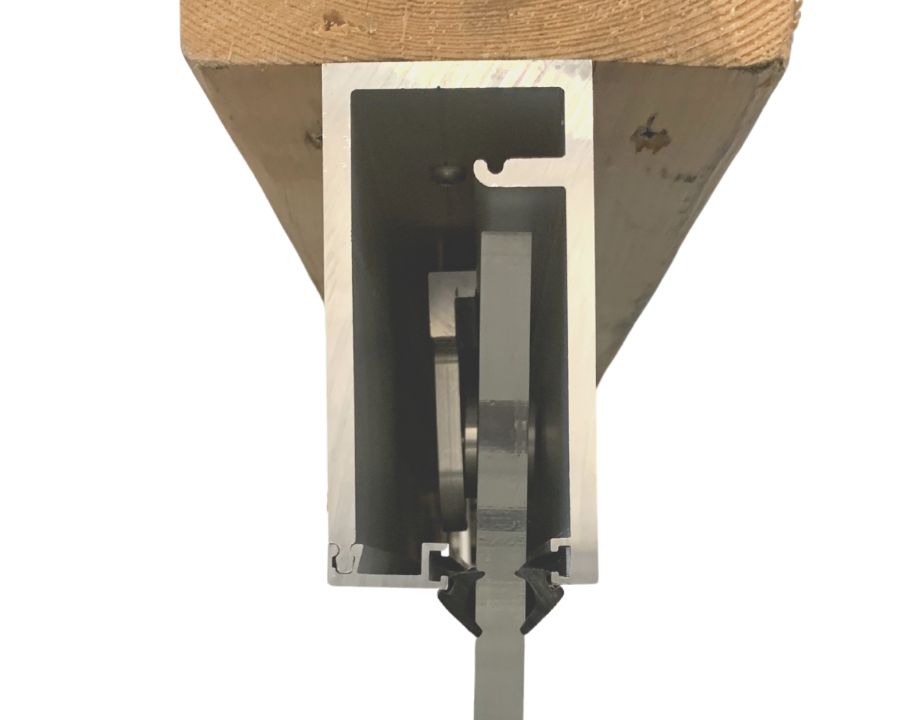

Head Channel – 6063-T5 Aluminum

Finish Details

  • Typically clear anodized
  • Painted or coloured anodized finishes available upon request

Supply Details

  • Supplied in 3m [12’] length

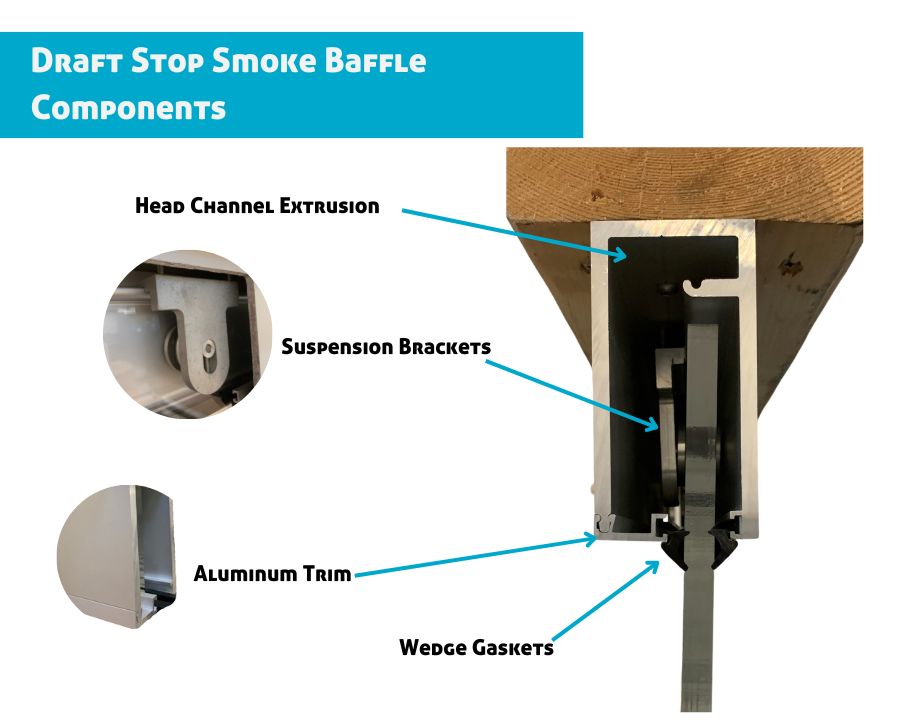

  • Supplied with wedge gaskets, aluminum trim for base of channel and two suspension assemblies per 12’ length
Non-combustible glass barrier to contain smoke during a fire and prevent smoke from spreading to other areas

Draft Stop Smoke Baffle

Where there’s smoke –
there’s a fire

We know that where there is fire, there’s smoke, and that smoke rises up quickly in large buildings. When fire burns off plastics or finishes, it can create an extremely toxic environment. That’s why our Draft Stop Smoke Baffle System was created to work alongside traditional fire sprinkler systems.

It is a smoke barrier system that minimizes the smoke traveling up in a fire and is installed at open atriums, stairwells, and escalators.

This non-combustible glass panel that hangs from the ceiling and meets the requirements of various building codes.
building codes.

We call it Draft Stop Smoke Baffle but you may use other terminology to describe it – draft curtains, curtain boards, fire curtains, or smoke curtains.
While the exact name may change,  the purpose does not –
Contain smoke during a fire and prevent smoke from spreading to other areas.

Not only does using a Draft Stop Smoke Baffle prevent smoke damage, it can also help save lives.

Developed upon request by leading glazing contractors, the Stella Draft Stop Smoke Baffle features

  • Concealed Support
    • Support can be hidden away (as a low profile that is inset into the ceiling) OR exposed
  • Labour-Saving Install
    • We’re experts at channel installs with our best-selling VUE Doors and Perimeter Channel System
    • Top channel is designed for quick installation with just FOUR simple steps
  • Ease of Replacement
    • Glass can be replaced with no impact on the surrounding ceiling or other finishes

  • Key Dimensions:

    View Dimensions
  • Category:

    Glazing Channels

  • CAD:

  • PDF:
