604 West Broadway Building Refresh

Where There’s Smoke, There’s Fire – JUST LAUNCHED – Stella Smoke Baffle

This building was constructed in the ‘70s using construction materials that were highly fashionable at the time. To refresh the external appearance the client removed the original, dark bronze lobbies and replaced them with two up to date, transparent glass entrance lobbies.

Since the suspended glass system needed to allow for movement at the entrance level, significant attention was paid to allow for vertical movement of the sliding doors whilst resisting wind loads and maintaining a weather seal.

Location:

Vancouver, BC

Architect:

Salikan Architecture with Prime Interiors

Contractor:

Superior Glass

Application:

Structural Glass Wall Systems, Glass Enclosure

Products & Systems Used:

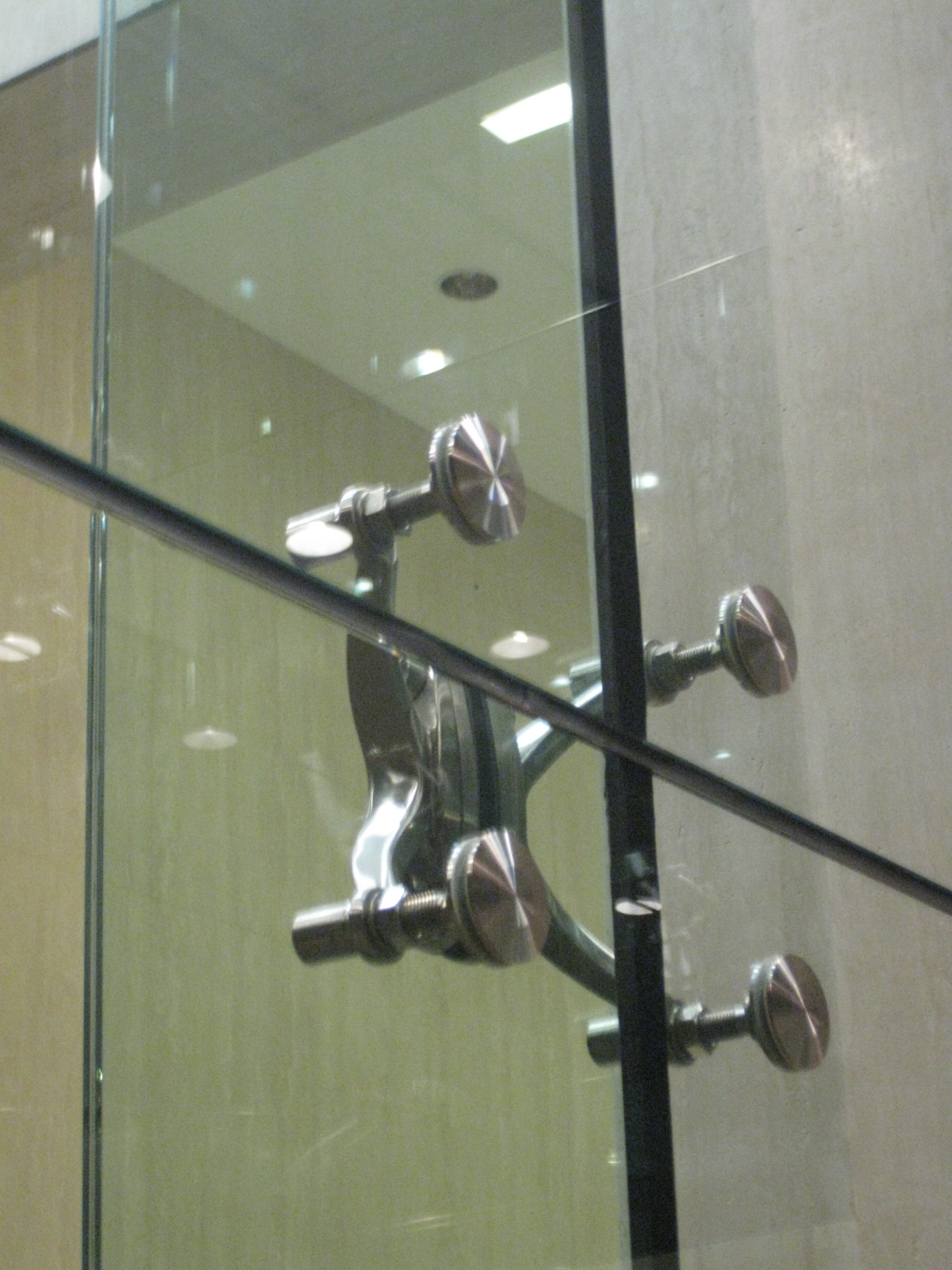

AB602T Full Glass Fin Support Structure SS202SV-AB602T SS204SV-AB602T Stella Fin Base Shoe Connector Stella Fin Head Connector Stella Fin Splice Plate
