Light-Duty Doc & Pin (Tapered-Face) (Double Connection)

Key Dimensions

  • Pins are the 12mm diameter option for lighter loads.
  • Docs have a 50mm diameter button face (to mount on exterior of glass).
  • Suitable for glass from 10mm to 15mm thick.
  • Hole in face glass – minimum 16mm [5/8”] diameter hole in glass.
  • Hole through structure for Pin – If connecting into glass minimum 22.2mm [7/8”] diameter hole in glass/if connecting into steel or another substructure minimum 12.7mm [1/2”] diameter hole.

Suggested Applications

  • Suitable for interior glass walls and infill panels.
  • Double (or back-to-back) connection is best suited for applications with glass panels on both sides on mounting post.
  • Can be mounted to glass, flat steel, HSS profiles, and timber.

Materials

  • Stainless Steel Grade 316 (standard).
  • Stainless Steel Grade 304 (upon request).

Finishes

  • Satin (standard).
  • Bright polish mirror (upon request).

SPECTRUM SERIES (Hard Ceramic Coating for Stainless Steel Hardware) – Upon Request.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Dark Bronze.

Available Textures: Matte, Brushed, Mirror.

Stella's hardware solution for light walls and infill panels!

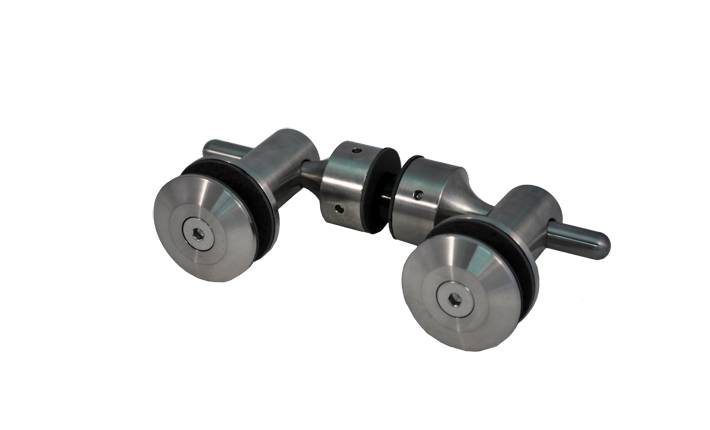

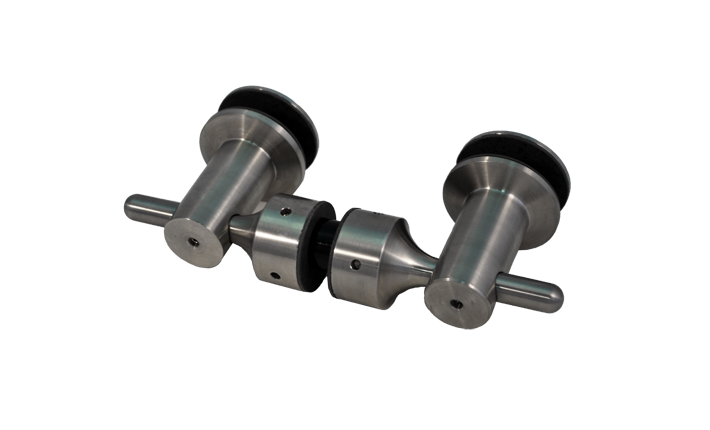

Light-Duty Doc & Pin (Tapered-Face) (Double Connection)

Stella’s light-duty, double connection Doc & Pin is an effective and easy solution for connecting two pieces of glass in the middle of an application (double doc and pins are essentially two single doc and pins mounted back to back through the support structure).

The tapered-face bolt is ideal for showcasing the hardware, once it’s mounted on the outside of the glass.

*One 12mm diameter Pin with one 50mm diameter Doc.

*This product is suppose to be used for infill panels. It’s not suitable for guardloads, for guardloads, use our Doc & Pin Heavy-Duty line.

Useful for situation where access from the back is not possible, the 5-steps install process of a front-mounted bolt saves you time and money!

  1. Step One – Fix the Stella glass bolt to mounting structure.
  2. Step Two – Remove the front cap of Stella glass bolt.
  3. Step Three – Place the glass on Stella glass bolt.
  4. Step Three – Secure the front cap of Stella glass bolt.
  5. That’s it! You’re done!

Spectrum Series Finishes!

Stella is always looking for new an innovative ways to ensure that you have options for your projects. The Spectrum Series is a Hard Ceramic Coating that allows stainless steel hardware to be colour coated without the fear of chipping that alternative colour options usually have.

Stainless Steel coatings such as powder coating or paint are prone to chipping. This coating is much harder and has much better adhesion to stainless steel. This coating is also much thinner (0.75 umm – 1.0 umm thickness) which means threads stay operable even when coated.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Purple.

Available Textures: Matte, Brushed, Polished/Mirror.

Specialty Patterns: Designer or specialty patterns (camouflage for example) are available upon request. These options do cost more but may be able to achieve specialty patterns that are otherwise unavailable on Stainless Steel.

  • Part Number:

    DP5012T0

  • Key Dimensions:

    View Dimensions
  • Category:

    Doc & Pins

  • CAD:

  • PDF:
