Hook Doc & Pin (Tapered-Face) (Single Connection)

Key Dimensions

  • Pin is 17mm diameter.
  • Doc has a 50mm diameter tapered face (to mount on exterior of glass).
  • Suitable for monolithic and laminated glass from 10mm to 20mm thick.
  • Hole in face glass – minimum 16mm [5/8”] diameter hole in glass.
  • Hole through structure at Pin – If connecting into glass minimum 22mm [7/8”] diameter hole in glass/if connecting into steel or another substructure minimum 12.7mm [1/2”] diameter hole.

Suggested Applications

  • Structural glass walls.
  • Largest recommended glass panel size up to 1.5m by 2.5m.
  • Single connection best used at corner and end conditions.
  • Can be mounted to glass, flat steel, HSS profiles, and timber.

Materials

  • Stainless Steel Grade 316 (standard).
  • Stainless Steel Grade 304 (upon request).

Finishes

  • Satin (standard).
  • Bright polish mirror (upon request).

SPECTRUM SERIES (Hard Ceramic Coating for Stainless Steel Hardware) – Upon Request.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Dark Bronze.

Available Textures: Matte, Brushed, Mirror.

Stella's unique "Hook" Doc & Pin offers fastest install on structural glass walls!

Hook Doc & Pin (Tapered-Face) (Single Connection)

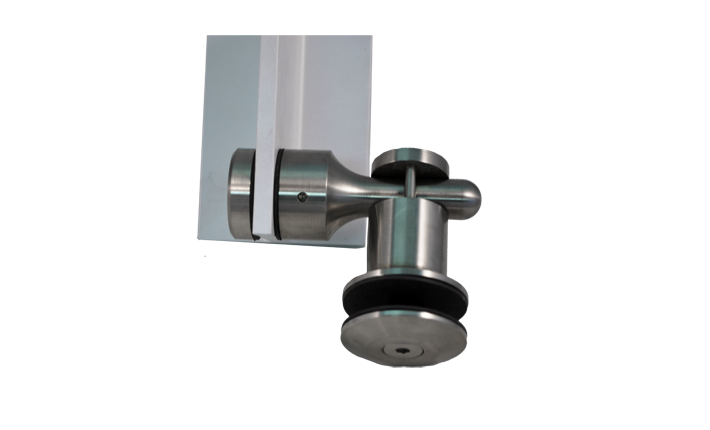

Stella’s heavy-duty, single connection Doc & Pin is an effective and easy solution for connecting glass to the support structure at the end or corner of an application. The “Hook” unique design allows the installer to do pre-work first (fix pin to structure and doc to glass) and then simply hang the doc (with glass already installed) on the pin in an easy and time-saving procedure.

The tapered-face bolt is ideal for showcasing the hardware, once it’s mounted on the outside of the glass.

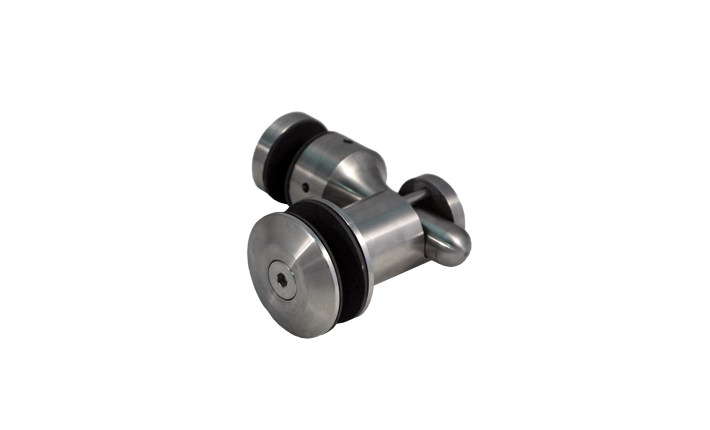

* Two 17mm diameter Pins and two 50mm diameter Docs mounted back to back.

Useful for situation where access from the back is not possible, the 5-steps install process of a front-mounted bolt saves you time and money!

  1. Step One – Fix the Stella glass bolt to mounting structure.
  2. Step Two – Remove the front cap of Stella glass bolt.
  3. Step Three – Place the glass on Stella glass bolt.
  4. Step Four – Secure the front cap of Stella glass bolt.
  5. That’s it! You’re done!

Spectrum Series Finishes!

Stella is always looking for new an innovative ways to ensure that you have options for your projects. The Spectrum Series is a Hard Ceramic Coating that allows stainless steel hardware to be colour coated without the fear of chipping that alternative colour options usually have.

Stainless Steel coatings such as powder coating or paint are prone to chipping. This coating is much harder and has much better adhesion to stainless steel. This coating is also much thinner (0.75 umm – 1.0 umm thickness) which means threads stay operable even when coated.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Purple.

Available Textures: Matte, Brushed, Polished/Mirror.

Specialty Patterns: Designer or specialty patterns (camouflage for example) are available upon request. These options do cost more but may be able to achieve specialty patterns that are otherwise unavailable on Stainless Steel.
