Heavy-Duty Doc & Pin (Countersunk-Face) (Single Connection)

Key Dimensions

  • Pin is the 17mm diameter option for heavier loads.
  • Doc has a 50mm diameter countersunk face (to mount flush with the glass for a smooth finish).
  • Suitable for monolithic glass from 10mm + thickness (if using laminate glass, the outer lite must be at least 10mm thick).
  • Hole in face glass – 19mm [3/4”] diameter countersunk hole in glass (upon order we can supply a sample bushing for you to forward to your glass fabricator to ensure sizing).
  • Hole through structure at Pin – If connecting into glass minimum 22mm [7/8”] diameter hole in glass/if connecting into steel or another substructure minimum 12.7mm [1/2”] diameter hole.

Suggested Applications

  • Structural glass walls (largest recommended glass panel size up to 1.5m by 2.5m).
  • Single connection best used at corner and end conditions.
  • Can be mounted to glass, flat steel, HSS profiles, and timber.

Materials

  • Stainless Steel Grade 316 (standard).
  • Stainless Steel Grade 304 (upon request).

Finishes

  • Satin (standard).
  • Bright polish mirror (upon request).

SPECTRUM SERIES (Hard Ceramic Coating for Stainless Steel Hardware) – Upon Request.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Dark Bronze.

Available Textures: Matte, Brushed, Mirror.

Commonly used on structural glass walls and canopies!

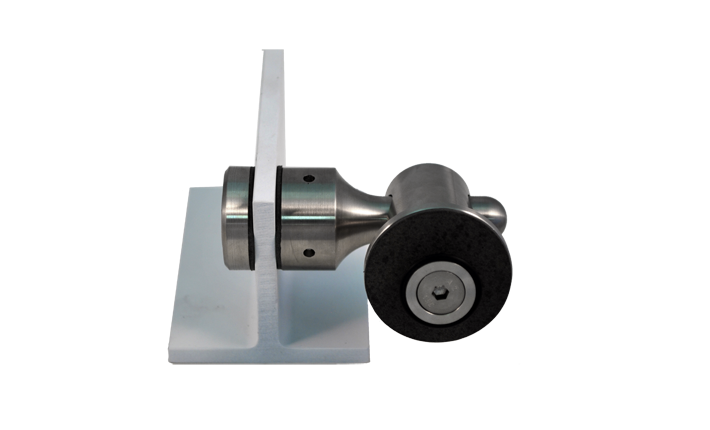

Heavy-Duty Doc & Pin (Countersunk-Face) (Single Connection)

Stella’s heavy-duty, single connection Doc & Pin is an effective and easy solution for connecting glass to the support structure at the end or corner of an application.

The countersunk-face bolt is ideal for hiding the hardware once is mounted flush with the front of the glass.

*Two 17mm diameter Pins with two 50mm diameter Docs.

Useful for situation where access from the back is not possible, the 5-steps install process of a front-mounted bolt saves you time and money!

  1. Step One – Fix the Stella glass bolt to mounting structure.
  2. Step Two – Remove the front cap of Stella glass bolt.
  3. Step Three – Place the glass on Stella glass bolt.
  4. Step Four – Secure the front cap of Stella glass bolt.
  5. That’s it! You’re done!

Spectrum Series Finishes!

Stella is always looking for new an innovative ways to ensure that you have options for your projects. The Spectrum Series is a Hard Ceramic Coating that allows stainless steel hardware to be colour coated without the fear of chipping that alternative colour options usually have.

Stainless Steel coatings such as powder coating or paint are prone to chipping. This coating is much harder and has much better adhesion to stainless steel. This coating is also much thinner (0.75 umm – 1.0 umm thickness) which means threads stay operable even when coated.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Purple.

Available Textures: Matte, Brushed, Polished/Mirror.

Specialty Patterns: Designer or specialty patterns (camouflage for example) are available upon request. These options do cost more but may be able to achieve specialty patterns that are otherwise unavailable on Stainless Steel.

  • Part Number:

    DP5021CM

  • Key Dimensions:

    View Dimensions
  • Category:

    Doc & Pins

  • CAD:

  • PDF:
