Organic Handrail Bracket (Glass-Mount)

Key Dimensions

  • 50mm [1”] diameter tapered face.
  • Suitable for glass from 12mm to 19mm thick.
  • Minimum 15.9mm [5/8’] diameter hole in glass.
  • Length of arm from mounting surface to centre of handrail rod is 68mm [2 11/16”].

Materials

  • Stainless Steel Grade 304 (standard).
  • Stainless Steel Grade 316 (upon request).

Finishes

  • Satin (standard)
  • Bright polish mirror (upon request)

STELLA SPECTRUM SERIES (Hard Ceramic Coating for Stainless Steel Hardware) – Upon Request.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Dark Bronze.

Available Textures: Matte, Brushed, Mirror.

A classic organic design.

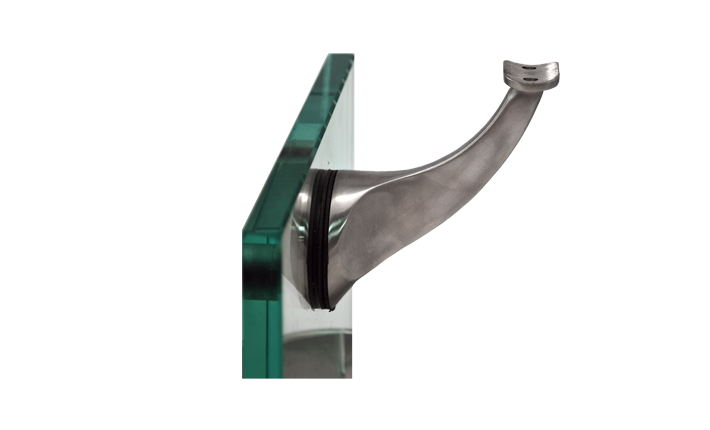

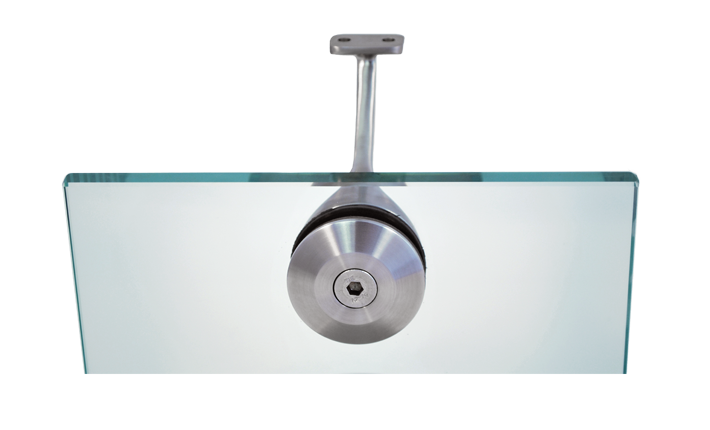

Organic Handrail Bracket (Glass-Mount)

The Organic Handrail bracket is a soft, classic design with rounded edges.

Looking for something different than our standard brushed finish?
Change the colour with Stella Spectrum – a HCC finish upon request) – gold and matte black are common requests.

This Organic Bracket is glass-mounted.
Each set is supplied complete with gaskets, ferrule bushing, and front-mounted face plate (for glass-mounted applications).
Note: Handrails and handrail mounting screws are not supplied by Stella at this time.

  • Part Number:

    BA509-G

  • Key Dimensions:

    View Dimensions
  • Category:

    Handrail Brackets

  • CAD:

  • PDF:
