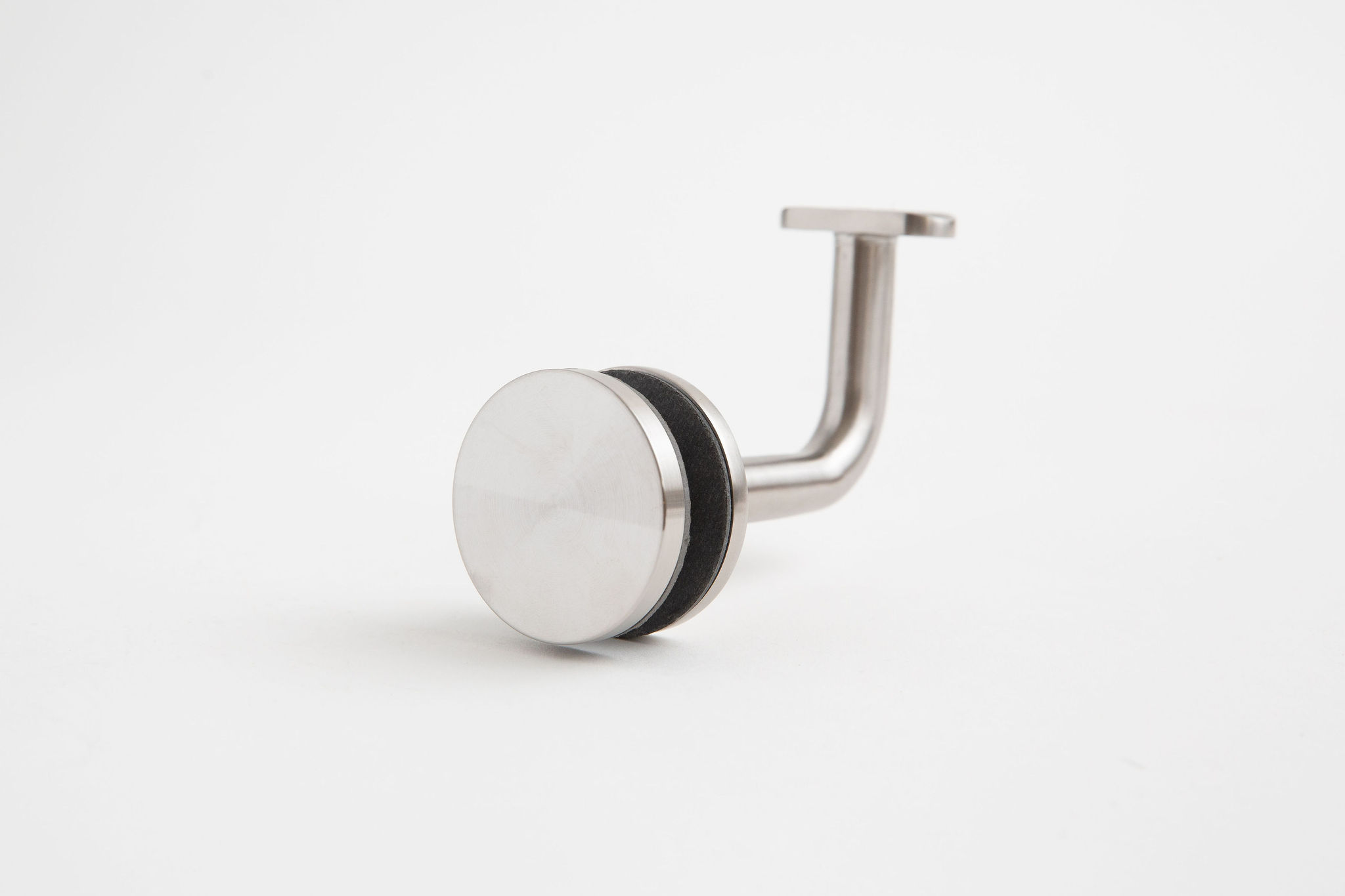

Sheer Handrail Bracket (Flat-Face) (Glass-Mount)

Key Dimensions

  • 50mm [2”] diameter tapered face.
  • Standard product accommodates 12mm to 19mm glass [1/2” to 3/4”](extended over 19mm [3/4”] option available).
  • Minimum 22.2mm [7/8”] diameter hole in glass for monolithic glass; for laminated glass – minimum 25.4mm [1”] diameter hole.
  • Length of arm from mounting surface to centre of handrail rod is 79mm [3 1/8”].
    Tapered face on outside of glass with two discreet fastening holes.

Materials

  • Duplex Stainless Steel (Standard) – superior loading capabilities and superior corrosive resistancy for chlorinated or salt-water environments.

Finishes

  • Satin (standard).
  • Bright polish mirror (upon request).

STELLA SPECTRUM SERIES (Hard Ceramic Coating for Stainless Steel Hardware) – Upon Request.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Dark Bronze.

Available Textures: Matte, Brushed, Mirror.

Superior loading capabilities to guardrail loads without a bulky design!

Sheer Handrail Bracket (Flat-Face) (Glass-Mount)

Strength + Beauty + Engineering Smarts = Perfect Handrail Bracket.

Entirely driven by an architect’s request (and designed by the Stella team), the Sheer handrail is one of the most slender handrail supports on the market with no flange or flare at the bracket’s connection point.

This Sheer handrail bracket mounts to glass with a flat outer face.

It’s not just good looks with this piece…
You can rely on its strength and safety (it’s designed, engineered, and tested to surpass guard loading requirements) as this bracket is cast using Duplex stainless steel, a material more than twice the strength of stainless steel.

When you order from Stella – you get the complete assembly.
This stand-off is supplied with the key mounting components you need to install – fibre gaskets, ferrule bushing and your chosen attachment to affix this handrail bracket to your mounting surface.
Note that we can modify this product for your application if you want – offering you choices for gaskets, stand-off lengths, and mounting hardware…custom is part of our name!
The only thing we don’t include is the mounting screws for the rail…and the rail.

Looking for something different than our standard brushed finish?
We can do that! Just ask!
Change the colour with Stella Spectrum – a HCC (hard ceramic coating) finish.
Gold and matte black are common requests.
We love our Spectrum finish as it’s a harder finish that better adheres to stainless steel, offers additional corrosion resistancy, and key to you – is budget and lead-time friendly.

Looking for a standard size?
Shop Stella Online for faster delivery of our standard sizes.

  • Part Number:

    BA503F-G

  • Key Dimensions:

    View Dimensions
  • Category:

    Handrail Brackets

  • CAD:

  • Need this part faster? Shop Stella Online and see if a standard size will get the job done.
